Western blot analysis of GAP43 using anti-GAP43 antibody (A01868). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: rat brain tissue lysates,
Lane 2: mouse brain tissue lysates,
Lane 3: human U87 whole cell lysates,
Lane 4: mouse Neuro-2a whole cell lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-GAP43 antigen affinity purified polyclonal antibody (A01868) at a dilution of 1:1000 and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for GAP43 at approximately 43 kDa. The expected band size for GAP43 is at 25 kDa.
IHC analysis of GAP43 using anti-GAP43 antibody (A01868).
GAP43 was detected in a paraffin-embedded section of rat brain tissue. Biotinylated goat anti-rabbit IgG was used as secondary antibody. The tissue section was incubated with rabbit anti-GAP43 Antibody (A01868) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of GAP43 using anti-GAP43 antibody (A01868).
GAP43 was detected in a paraffin-embedded section of human cerebellum tissue. The tissue section was incubated with rabbit anti-GAP43 Antibody (A01868) at a dilution of 1:200 and developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.
IF analysis using anti- GAP43 antibody (A01868). detected in paraffin-embedded section of rat brain tissue. The tissue section were stained using the Fluoro488-conjugated Anti-rabbit IgG Secondary Antibody (green)(Catalog # BA1127) and counterstained with DAPI (blue).
all(5)

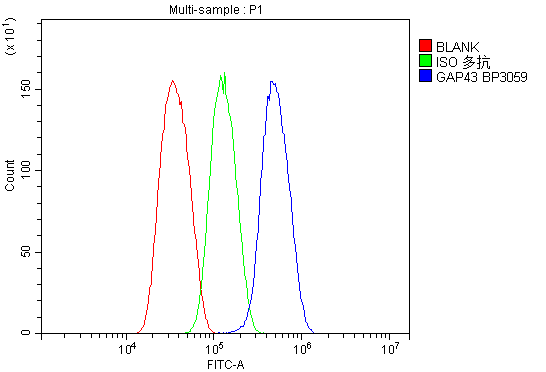

Flow Cytometry analysis of HepG2 cells using anti-GAP43 antibody (A01868).
Overlay histogram showing HepG2 cells stained with A01868 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-GAP43 Antibody (A01868) at 1:100 dilution for 30 min at 20°C. Fluoro488 conjugated goat anti-rabbit IgG (BA1127) was used as secondary antibody at 1:100 dilution for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG at 1:100 dilution used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
| Western blot (WB): | 1:500-2000 |
| Immunofluorescence (IF): | 1:50~1:400 |
| Flow Cytometry (Fixed): | 1:50-200 |
| Immunohistochemistry (IHC): | 1:50-400 |
| (Boiling the paraffin sections in 10mM citrate buffer,pH6.0,or PH8.0 EDTA repair liquid for 20 mins is required for the staining of formalin/paraffin sections.) Optimal working dilutions must be determined by end user. | |
Western blot analysis of GAP43 using anti-GAP43 antibody (A01868). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: rat brain tissue lysates,
Lane 2: mouse brain tissue lysates,
Lane 3: human U87 whole cell lysates,
Lane 4: mouse Neuro-2a whole cell lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-GAP43 antigen affinity purified polyclonal antibody (A01868) at a dilution of 1:1000 and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for GAP43 at approximately 43 kDa. The expected band size for GAP43 is at 25 kDa.
IHC analysis of GAP43 using anti-GAP43 antibody (A01868).
GAP43 was detected in a paraffin-embedded section of rat brain tissue. Biotinylated goat anti-rabbit IgG was used as secondary antibody. The tissue section was incubated with rabbit anti-GAP43 Antibody (A01868) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of GAP43 using anti-GAP43 antibody (A01868).
GAP43 was detected in a paraffin-embedded section of human cerebellum tissue. The tissue section was incubated with rabbit anti-GAP43 Antibody (A01868) at a dilution of 1:200 and developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.
IF analysis using anti- GAP43 antibody (A01868). detected in paraffin-embedded section of rat brain tissue. The tissue section were stained using the Fluoro488-conjugated Anti-rabbit IgG Secondary Antibody (green)(Catalog # BA1127) and counterstained with DAPI (blue).
Flow Cytometry analysis of HepG2 cells using anti-GAP43 antibody (A01868).
Overlay histogram showing HepG2 cells stained with A01868 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-GAP43 Antibody (A01868) at 1:100 dilution for 30 min at 20°C. Fluoro488 conjugated goat anti-rabbit IgG (BA1127) was used as secondary antibody at 1:100 dilution for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG at 1:100 dilution used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
Western blot analysis of GAP43 using anti-GAP43 antibody (A01868). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: rat brain tissue lysates,
Lane 2: mouse brain tissue lysates,
Lane 3: human U87 whole cell lysates,
Lane 4: mouse Neuro-2a whole cell lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-GAP43 antigen affinity purified polyclonal antibody (A01868) at a dilution of 1:1000 and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for GAP43 at approximately 43 kDa. The expected band size for GAP43 is at 25 kDa.
IHC analysis of GAP43 using anti-GAP43 antibody (A01868).
GAP43 was detected in a paraffin-embedded section of rat brain tissue. Biotinylated goat anti-rabbit IgG was used as secondary antibody. The tissue section was incubated with rabbit anti-GAP43 Antibody (A01868) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of GAP43 using anti-GAP43 antibody (A01868).
GAP43 was detected in a paraffin-embedded section of human cerebellum tissue. The tissue section was incubated with rabbit anti-GAP43 Antibody (A01868) at a dilution of 1:200 and developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.
IF analysis using anti- GAP43 antibody (A01868). detected in paraffin-embedded section of rat brain tissue. The tissue section were stained using the Fluoro488-conjugated Anti-rabbit IgG Secondary Antibody (green)(Catalog # BA1127) and counterstained with DAPI (blue).
Flow Cytometry analysis of HepG2 cells using anti-GAP43 antibody (A01868).
Overlay histogram showing HepG2 cells stained with A01868 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-GAP43 Antibody (A01868) at 1:100 dilution for 30 min at 20°C. Fluoro488 conjugated goat anti-rabbit IgG (BA1127) was used as secondary antibody at 1:100 dilution for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG at 1:100 dilution used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
