| Western blot (WB): | 1:500-2000 |
| Immunohistochemistry (IHC): | 1:50-200 |
| Immunocytochemistry/Immunofluorescence (ICC/IF): | 1:50-200 |

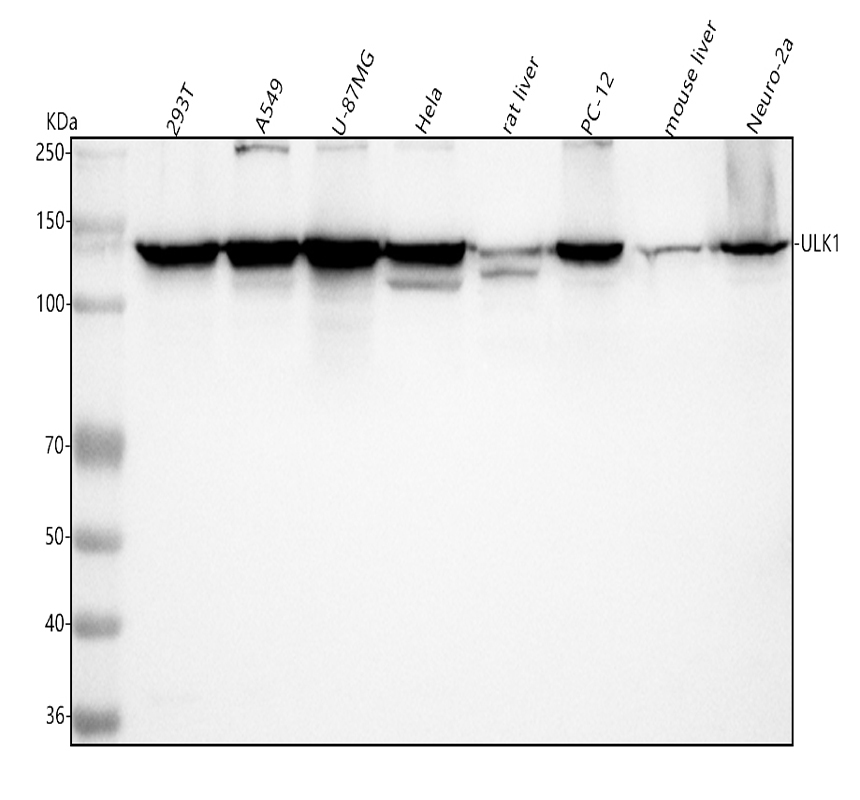

Western blot analysis of anti-ULK1 antibody (BM5170). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human 293T whole cell lysates,
Lane 2: human A549 whole cell lysates,
Lane 3: human U-87MG whole cell lysates,
Lane 4: human Hela whole cell lysates,
Lane 5: rat liver tissue lysates,
Lane 6: rat PC-12 whole cell lysates,
Lane 7: mouse liver tissue lysates,
Lane 8: mouse Neuro-2a whole cell lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-ULK1 antigen affinity purified monoclonal antibody (BM5170) at a dilution of 1:1000 and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for ULK1 at approximately 130 kDa. The expected band size for ULK1 is at 113 kDa.

IHC analysis of ULK1 using anti-ULK1 antibody (BM5170) .
ULK1 was detected in a paraffin-embedded section of human prostate cancer tissue. The tissue section was incubated with rabbit anti-ULK1 Antibody (BM5170) at a dilution of 1:200 and developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.

IHC analysis of ULK1 using anti-ULK1 antibody (BM5170) .
ULK1 was detected in a paraffin-embedded section of human spleen tissue. The tissue section was incubated with rabbit anti-ULK1 Antibody (BM5170) at a dilution of 1:200 and developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.

IHC analysis of ULK1 using anti-ULK1 antibody (BM5170) .
ULK1 was detected in a paraffin-embedded section of rat brain tissue. The tissue section was incubated with rabbit anti-ULK1 Antibody (BM5170) at a dilution of 1:200 and developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.

IHC analysis of ULK1 using anti-ULK1 antibody (BM5170) .
ULK1 was detected in a paraffin-embedded section of mouse brain tissue. The tissue section was incubated with rabbit anti-ULK1 Antibody (BM5170) at a dilution of 1:200 and developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.

Western blot analysis of anti-ULK1 antibody (BM5170). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human 293T whole cell lysates,
Lane 2: human A549 whole cell lysates,
Lane 3: human U-87MG whole cell lysates,
Lane 4: human Hela whole cell lysates,
Lane 5: rat liver tissue lysates,
Lane 6: rat PC-12 whole cell lysates,
Lane 7: mouse liver tissue lysates,
Lane 8: mouse Neuro-2a whole cell lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-ULK1 antigen affinity purified monoclonal antibody (BM5170) at a dilution of 1:1000 and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for ULK1 at approximately 130 kDa. The expected band size for ULK1 is at 113 kDa.

IHC analysis of ULK1 using anti-ULK1 antibody (BM5170) .
ULK1 was detected in a paraffin-embedded section of human prostate cancer tissue. The tissue section was incubated with rabbit anti-ULK1 Antibody (BM5170) at a dilution of 1:200 and developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.

IHC analysis of ULK1 using anti-ULK1 antibody (BM5170) .
ULK1 was detected in a paraffin-embedded section of human spleen tissue. The tissue section was incubated with rabbit anti-ULK1 Antibody (BM5170) at a dilution of 1:200 and developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.

IHC analysis of ULK1 using anti-ULK1 antibody (BM5170) .
ULK1 was detected in a paraffin-embedded section of rat brain tissue. The tissue section was incubated with rabbit anti-ULK1 Antibody (BM5170) at a dilution of 1:200 and developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.

IHC analysis of ULK1 using anti-ULK1 antibody (BM5170) .
ULK1 was detected in a paraffin-embedded section of mouse brain tissue. The tissue section was incubated with rabbit anti-ULK1 Antibody (BM5170) at a dilution of 1:200 and developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.
