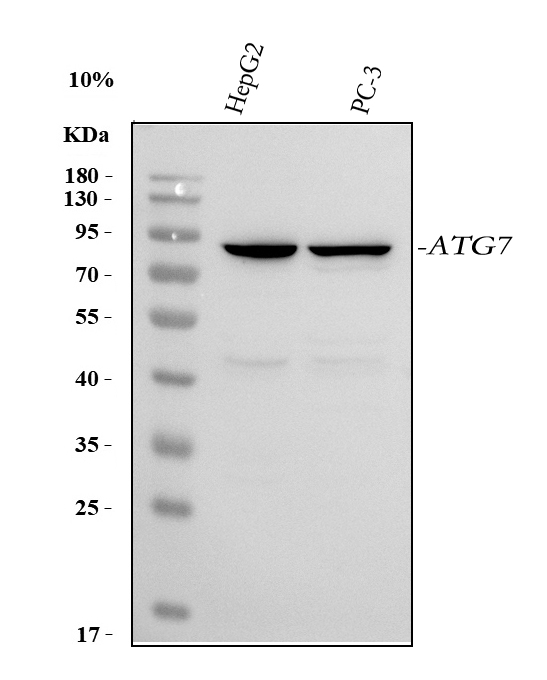

Western blot analysis of anti-ATG7 antibody (A00346-5). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human HepG2 whole cell lysates,
Lane 2: human PC-3 whole cell lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-ATG7 antigen affinity purified polyclonal antibody (A00346-5) and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for ATG7 at approximately 78 kDa. The expected band size for ATG7 is at 78 kDa.
IHC analysis of ATG7 using anti-ATG7 antibody (A00346-5).
ATG7 was detected in a paraffin-embedded section of human colorectal adenocarcinoma tissue. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of ATG7 using anti-ATG7 antibody (A00346-5).
ATG7 was detected in a paraffin-embedded section of human liver cancer tissue. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of ATG7 using anti-ATG7 antibody (A00346-5).
ATG7 was detected in a paraffin-embedded section of human lung adenocarcinoma tissue. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of ATG7 using anti-ATG7 antibody (A00346-5).
ATG7 was detected in a paraffin-embedded section of human meningioma tissue. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of ATG7 using anti-ATG7 antibody (A00346-5).
ATG7 was detected in a paraffin-embedded section of human ovarian serous adenocarcinoma tissue. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.
ICC/IF analysis of ATG7 using anti-ATG7 antibody (A00346-5).
ATG7 was detected in an immunocytochemical section of Hela cells. Fluoro488 Conjugated Goat Anti-Rabbit IgG (Green) (Catalog # BA1127) was used as secondary antibody. The section was counterstained with DAPI (Catalog # AR1176) (Blue).

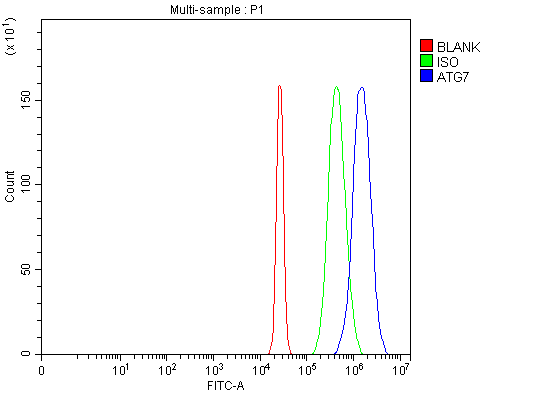

Flow Cytometry analysis of HepG2 cells using anti-ATG7 antibody (A00346-5).
Overlay histogram showing HepG2 cells stained with A00346-5 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-ATG7 Antibody (A00346-5, 1:100). Fluoro488 conjugated goat anti-rabbit IgG (BA1127, 1:100) was used as secondary antibody. Isotype control antibody (Green line) was rabbit IgG (Catalog # BA1045) (1:100) used under the same conditions. Unlabelled sample (Red line) was also used as a control.
| Western blot (WB): | 1:500-2000 |
| Immunohistochemistry (IHC): | 1:50-400 |
| Immunocytochemistry/Immunofluorescence (ICC/IF): | 1:50-400 |
| Flow Cytometry (Fixed): | 1:50-200 |
| Enzyme linked immunosorbent assay (ELISA): | 1:100-1000 |
| (Boiling the paraffin sections in 10mM citrate buffer,pH6.0,or PH8.0 EDTA repair liquid for 20 mins is required for the staining of formalin/paraffin sections.) Optimal working dilutions must be determined by end user. | |
Western blot analysis of anti-ATG7 antibody (A00346-5). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human HepG2 whole cell lysates,
Lane 2: human PC-3 whole cell lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-ATG7 antigen affinity purified polyclonal antibody (A00346-5) and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for ATG7 at approximately 78 kDa. The expected band size for ATG7 is at 78 kDa.
IHC analysis of ATG7 using anti-ATG7 antibody (A00346-5).
ATG7 was detected in a paraffin-embedded section of human colorectal adenocarcinoma tissue. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of ATG7 using anti-ATG7 antibody (A00346-5).
ATG7 was detected in a paraffin-embedded section of human liver cancer tissue. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of ATG7 using anti-ATG7 antibody (A00346-5).
ATG7 was detected in a paraffin-embedded section of human lung adenocarcinoma tissue. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of ATG7 using anti-ATG7 antibody (A00346-5).
ATG7 was detected in a paraffin-embedded section of human meningioma tissue. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of ATG7 using anti-ATG7 antibody (A00346-5).
ATG7 was detected in a paraffin-embedded section of human ovarian serous adenocarcinoma tissue. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.
ICC/IF analysis of ATG7 using anti-ATG7 antibody (A00346-5).
ATG7 was detected in an immunocytochemical section of Hela cells. Fluoro488 Conjugated Goat Anti-Rabbit IgG (Green) (Catalog # BA1127) was used as secondary antibody. The section was counterstained with DAPI (Catalog # AR1176) (Blue).
Flow Cytometry analysis of HepG2 cells using anti-ATG7 antibody (A00346-5).
Overlay histogram showing HepG2 cells stained with A00346-5 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-ATG7 Antibody (A00346-5, 1:100). Fluoro488 conjugated goat anti-rabbit IgG (BA1127, 1:100) was used as secondary antibody. Isotype control antibody (Green line) was rabbit IgG (Catalog # BA1045) (1:100) used under the same conditions. Unlabelled sample (Red line) was also used as a control.
Western blot analysis of anti-ATG7 antibody (A00346-5). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human HepG2 whole cell lysates,
Lane 2: human PC-3 whole cell lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-ATG7 antigen affinity purified polyclonal antibody (A00346-5) and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for ATG7 at approximately 78 kDa. The expected band size for ATG7 is at 78 kDa.
IHC analysis of ATG7 using anti-ATG7 antibody (A00346-5).
ATG7 was detected in a paraffin-embedded section of human colorectal adenocarcinoma tissue. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of ATG7 using anti-ATG7 antibody (A00346-5).
ATG7 was detected in a paraffin-embedded section of human liver cancer tissue. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of ATG7 using anti-ATG7 antibody (A00346-5).
ATG7 was detected in a paraffin-embedded section of human lung adenocarcinoma tissue. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of ATG7 using anti-ATG7 antibody (A00346-5).
ATG7 was detected in a paraffin-embedded section of human meningioma tissue. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of ATG7 using anti-ATG7 antibody (A00346-5).
ATG7 was detected in a paraffin-embedded section of human ovarian serous adenocarcinoma tissue. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.
ICC/IF analysis of ATG7 using anti-ATG7 antibody (A00346-5).
ATG7 was detected in an immunocytochemical section of Hela cells. Fluoro488 Conjugated Goat Anti-Rabbit IgG (Green) (Catalog # BA1127) was used as secondary antibody. The section was counterstained with DAPI (Catalog # AR1176) (Blue).
Flow Cytometry analysis of HepG2 cells using anti-ATG7 antibody (A00346-5).
Overlay histogram showing HepG2 cells stained with A00346-5 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-ATG7 Antibody (A00346-5, 1:100). Fluoro488 conjugated goat anti-rabbit IgG (BA1127, 1:100) was used as secondary antibody. Isotype control antibody (Green line) was rabbit IgG (Catalog # BA1045) (1:100) used under the same conditions. Unlabelled sample (Red line) was also used as a control.
